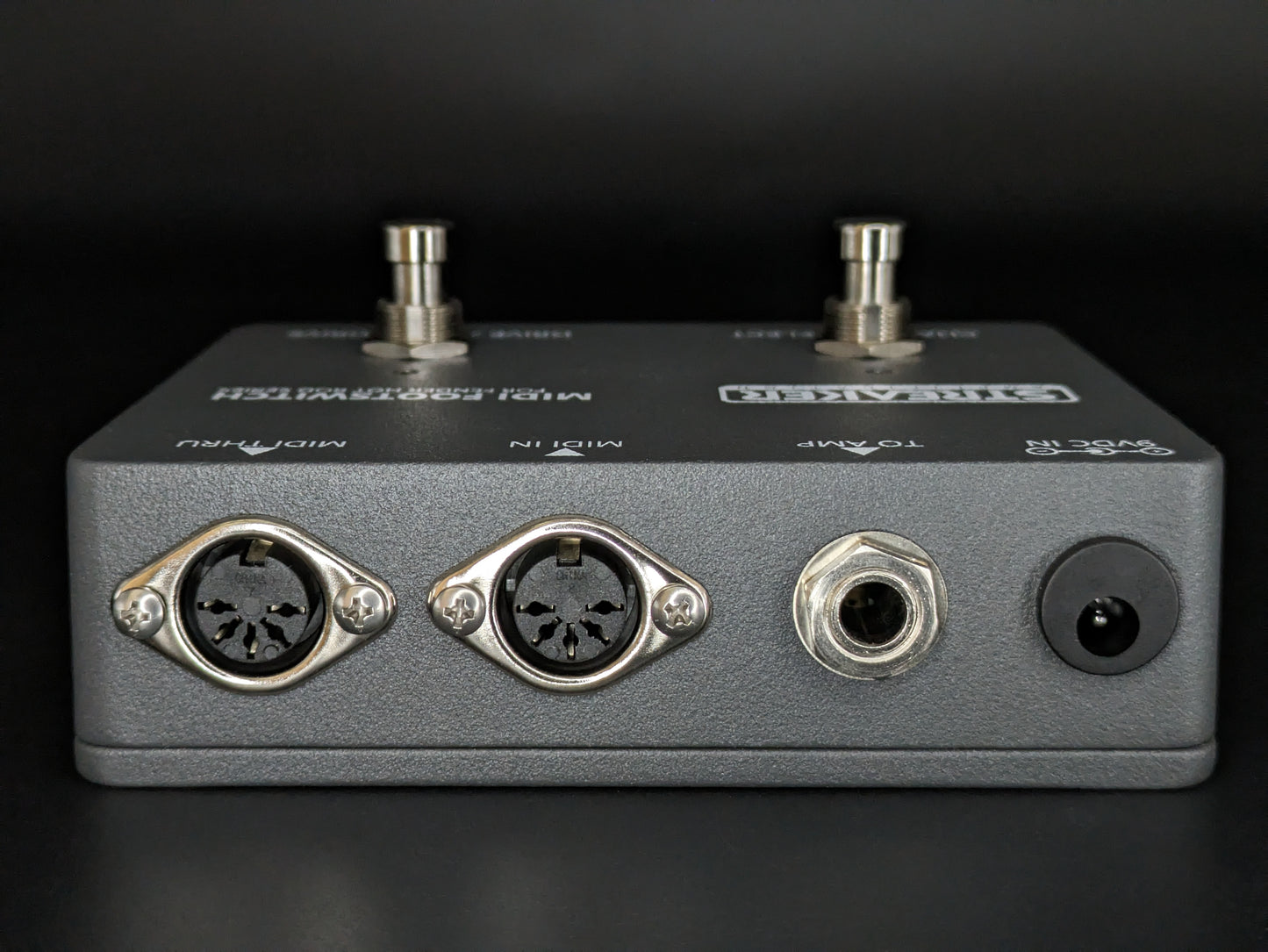

MIDI Footswitch for Fender Hot Rod Series Amplifiers

This is a high-quality MIDI-compatible replacement/upgrade footswitch for Fender Hot Rod Series amplifiers having 2-button footswitches for switching the Channel Select and Drive/More Drive amp functions. It offers the same functionality as the amp's factory footswitch but adds MIDI In/Thru jacks for full integration with your MIDI control chain. The Channel Select and Drive/More Drive functions are controllable via both MIDI program change (PC) and MIDI channel change (CC) commands.

• Support for both MIDI CC and PC commands
• Configurable MIDI channel (1-16) via internal DIP switch
• MIDI Thru function support for chaining to other devices
• Channel Select and Drive/More Drive foot switches
• Red and Yellow/Red status indicator LED's
• Memory feature restores switch on/off states at next power-up
• Rugged diecast aluminum enclosure with powder coat finish
• Premium quality jacks and switches
• Hand-made in the USA
• Dimensions: 120 x 94 x 33mm (1590BB)
• Requires 1/4" unshielded speaker cable (preferred) or instrument cable (not included)
• Requires standard 9VDC center-negative pedal power (not included)

User Guide:

 Click here to download
